CV.. SZ (CV.. SZB) vertical high-speed ratio with three-phase aluminum shell (brake) motor reducer
Parameter details

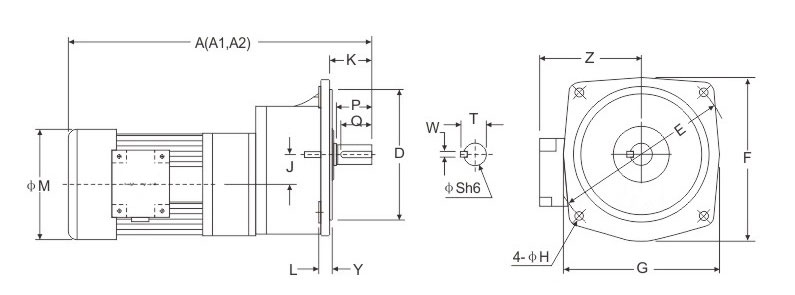

Unit (MM)
Horsepower | Reduction ratio | Ontology | S | A | A1 | A2 | D | E | F | G | H | J | K | L | M | Y | Z |
100W 1/8HP | 250-1800 | 1#+2# | 22 | 345 | 345 | 345 | 148 | 185 | 175 | 165 | 11 | 33.5 | 48 | 12 | 133 | 3 | 120 |
200W 1/4HP | 250-1800 | 1#+3# | 28 | 410 | 410 | 410 | 170 | 220 | 205 | 195 | 12 | 39 | 58 | 13 | 133 | 3 | 120 |
400W 1/2HP | 250-1800 | 2#+4# | 32 | 480 | 480 | 480 | 185 | 255 | 248 | 225 | 15 | 47.5 | 65 | 16 | 167 | 3 | 135 |
750W 1HP | 250-1800 | 3#+5# | 40 | 570 | 570 | 570 | 230 | 310 | 291 | 272 | 15 | 59 | 85 | 21 | 167 | 5 | 135 |
Remark: A: three phase aluminum shell motor ; A1: three phase iron case motor ; A2 :Three phase motor with brake ;
