Ch.. SZ (Ch.. SZB) horizontal high speed ratio with three-phase aluminum shell (brake) motor reducer
Parameter details

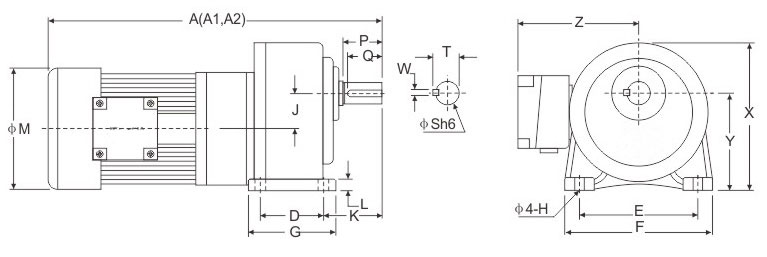

Unit (MM)
Horsepower | Reduction ratio | Ontology | Type IV | A | A1 | A2 | D | E | F | G | H | J | K | L | M | X | Y | Z |
100W 1/8HP | 250-1800 | 1#+2# | 22 | 345 | 345 | 345 | 65 | 130 | 158 | 90 | 11 | 33.5 | 60 | 13 | 133 | 152 | 97.5 | 120 |
200W 1/4HP | 250-1800 | 1#+3# | 28 | 410 | 410 | 410 | 90 | 140 | 178 | 120 | 11 | 39 | 68 | 17 | 133 | 178 | 116 | 120 |
400W 1/2HP | 250-1800 | 2#+4# | 32 | 480 | 480 | 480 | 130 | 170 | 210 | 165 | 13 | 47.5 | 70 | 23 | 167 | 212 | 140 | 135 |
750W 1HP | 250-1800 | 3#+5# | 40 | 570 | 570 | 570 | 150 | 210 | 265 | 198 | 15 | 59 | 89 | 24 | 167 | 250 | 162 | 135 |
Remark: A: three phase aluminum shell motor ; A1 :Three phase iron case motor ; A2 :Three phase motor with brake ;
