CV.. SZ (CV.. SZB) vertical reducer with three-phase aluminum shell (brake)
Parameter details

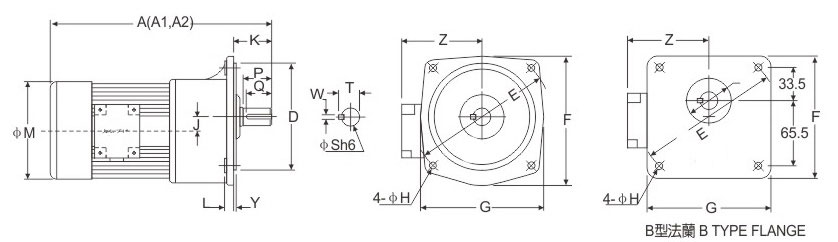

Horsepower | Reduction ratio | Ontology | S | A | A1 | A2 | D | E | F | G | H | J | K | L | M | Y | Z |
100W 1/8HP | 60-200 | 1# | *18 | 250 | 250 | 250 | 50 | 140 | 120 | 120 | 9 | 16 | 40 | 12 | 133 | 6 | 120 |
200W 1/4HP | 15-90 | 1# | *18 | 285 | 285 | 285 | 50 | 140 | 120 | 120 | 9 | 16 | 40 | 12 | 133 | 6 | 120 |
100-200 | 2# | 22 | 315 | 315 | 315 | 148 | 185 | 175 | 165 | 11 | 17.5 | 48 | 12 | 133 | 3 | 120 | |
400W 1/2HP | 15-90 | 2# | 22 | 330 | 330 | 330 | 148 | 185 | 175 | 165 | 11 | 17.5 | 48 | 12 | 167 | 3 | 135 |
100-200 | 3# | 28 | 360 | 360 | 360 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 167 | 3 | 135 | |
750W 1HP | 3-25 | 2# | 22 | 330 | 330 | 330 | 148 | 185 | 175 | 165 | 11 | 17.5 | 48 | 12 | 167 | 3 | 135 |
30-120 | 3# | 28 | 380 | 380 | 380 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 167 | 3 | 135 | |
125-200 | 4# | 32 | 410 | 410 | 410 | 185 | 255 | 248 | 225 | 15 | 30 | 65 | 16 | 167 | 3 | 135 | |
500W 2HP | 3-30 | 3# | 28 | 420 | 420 | 420 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 192 | 3 | 146 |
40-100 | 4# | 32 | 450 | 450 | 450 | 185 | 255 | 248 | 225 | 15 | 30 | 65 | 16 | 192 | 3 | 146 | |
110-150 | 5# | 40 | 510 | 510 | 510 | 230 | 310 | 291 | 272 | 15 | 36 | 85 | 21 | 192 | 5 | 146 | |
2200W 3HP | 45-400 | 5# | 40 | 520 | 520 | 520 | 230 | 310 | 291 | 272 | 15 | 36 | 85 | 21 | 220 | 5 | 160 |
3700W 5HP | 15-60 | 5# | 40 | 560 | 560 | 560 | 230 | 310 | 291 | 272 | 15 | 36 | 85 | 21 | 220 | 5 | 160 |
Remark: A: three phase aluminum shell motor ; A1 :Three phase iron case motor ; A2 :Three phase motor with brake ; * :Type B output flange
