W. + CV.. s (a) worm gear reducer with vertical three (single) gear reducer

Parameter details

Output shaft size
Output shaft			keyway			Key
TYPE	Sh6	P	W	T	Q	SPEC'
60#	∮22	50	7	25	45	7745
70#	∮28	60	7	31.1	55	7755
80#	∮32	65	10	35.5	60	10860
100#	∮38	75	10	41	70	10870

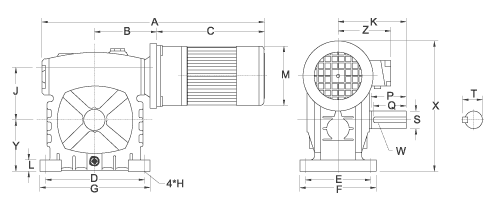

適用機型：W../CV..S, W../CV..A

蝸輪機型	齒輪本體			A	A1	B	C	D	E	F	G	H	J	K	L	M	Y	Z
蝸輪機型	型番	馬力	減速比	A	A1	B	C	D	E	F	G	H	J	K	L	M	Y	Z
60# - 1/30	1#-∮18	100W (1/8HP)	1/3-50	383	383	98	208	120	105	131	154	11	60	112	16	133	195	90
70# - 1/30	1#-∮18	100W (1/8HP)	1/3-50	428	428	125	208	150	115	152	190	15	70	130	20	133	220	105
	1#-∮18	200W (1/4HP)	1/3-10	465	465	128	242	150	115	152	190	15	70	130	20	133	220	105
	2#-∮22	200W (1/4HP)	1/15-30	489	489	128	266	150	115	152	190	15	70	130	20	133	262	105
	2#-∮22	400W (1/2HP)	1/3-10	502	502	128	279	150	115	152	190	15	70	130	20	167	262	105
80# - 1/30	1#-∮18	100W (1/8HP)	1/3-50	455	455	137	208	180	135	172	220	15	80	143	20	133	245	120
	1#-∮18	200W (1/4HP)	1/3-10	492	492	140	242	180	135	172	220	15	80	143	20	133	245	120
	2#-∮22	200W (1/4HP)	1/15-90	516	516	140	266	180	135	172	220	15	80	143	20	133	287	120
	2#-∮22	400W (1/2HP)	1/3-10	529	529	140	279	180	135	172	220	15	80	143	20	167	287	120
100# - 1/30	2#-∮22	200W (1/4HP)	*1/5-10	572	572	170	266	220	155	194	272	15	100	171	25	133	337	150
		200W (1/4HP)	1/15-90	572	572	170	266	220	155	194	272	15	100	171	25	133	337	150
		400W (1/2HP)	1/3-10	585	585	170	279	220	155	194	272	15	100	171	25	167	337	150
	3#-∮28	400W (1/2HP)	1/15-60	608	608	175	297	220	155	194	272	15	100	171	25	167	353	150
	3#-∮28	750W (1HP)	1/3-25	625	625	175	314	220	155	194	272	15	100	171	25	167	353	150
