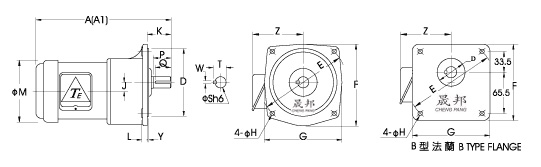

CV.. P (CV.. Pb) vertical attached Dongyuan iron shell (brake) motor
Parameter details
Output shaft size | |||||
Output shaft | keyway | Key | |||
Sh6 0 | P | W | T | Q | SPEC' |
∮22 | 40 | 7 | 25 | 35 | 7*7*35 |
∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
適用機型：CV..P, CV..PB
馬力 | 減速比 | 本體 | 型番(S) | A | A1 | D | E | F | G | H | J | K | L | M | Y | Z |
200W 1/4HP | 3-90 | 2# | 22 | 320 | 320 | 148 | 185 | 175 | 165 | 11 | 17.5 | 48 | 12 | 131 | 3 | 130 |
100-200 | 3# | 28 | 350 | 350 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 131 | 3 | 130 | |
400W 1/2HP | 3-10 | 2# | 22 | 330 | 330 | 148 | 185 | 175 | 165 | 11 | 17.5 | 48 | 12 | 144 | 3 | 135 |
15-90 | 3# | 28 | 360 | 360 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 144 | 3 | 135 | |
100-200 | 4# | 32 | 390 | 390 | 185 | 255 | 248 | 225 | 15 | 30 | 65 | 16 | 144 | 3 | 135 | |
750W 1HP | 3-25 | 3# | 28 | 375 | 375 | 170 | 220 | 205 | 195 | 12 | 23 | 58 | 13 | 163 | 3 | 150 |
| 30-120 | 4# | 32 | 410 | 410 | 185 | 255 | 248 | 225 | 15 | 30 | 65 | 16 | 163 | 3 | 150 | |
125-200 | 5# | 40 | 460 | 460 | 230 | 310 | 291 | 272 | 15 | 36 | 85 | 21 | 163 | 5 | 150 | |
1500W 2HP | 3-30 | 4# | 32 | 450 | 450 | 185 | 255 | 248 | 225 | 15 | 30 | 65 | 16 | 184 | 3 | 162 |
| 40-100 | 5# | 40 | 500 | 500 | 230 | 310 | 291 | 272 | 15 | 36 | 85 | 21 | 184 | 5 | 162 | |
| 105-120 | 6# | 50 | 560 | 560 | 280 | 390 | 372 | 342 | 18 | 51 | 92 | 25 | 184 | 5 | 162 |
