CV.. L (CV.. LB) vertical with dc iron case (brake) motor reducer
Parameter details
Output shaft size | |||||
The output shaft | keyway | key | |||
Sh6 | P | W. | T | Q | The class ' |
30 18 | 30 | 5 | 20.2 | 27 | 5 * 5 * 27 |
30 22 | 40 | 7 | 25 | 35 | 7 * 7 * 35 |
30 28 | 45 | 7 | 31.1 | 40 | 7 * 7 * 40 |
30 and 32 | 55 | 10 | 35.5 | 50 | 10 * 8 * 50 |
30 to 40 | 65 | 10 | 43.5 | 60 | 10 * 8 * 60 |
Applicable model: CH.. L, CH... LB

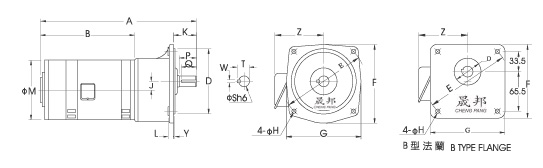

horsepower | Reduction ratio | DCThe motor | Comments (S) | a. | B | D | E | F | G | H. | J | K. | L | M | Y | Z |
100 w. 1/8 HP | 3-25 | SV - 94. | *18 | 295 | 190 | 50 | 140 | 120 | 120 | 9 | 16 | 38 | 12 | 133 | 6 | --- |
| 30-120. | SV - 94. | 22 | 325 | 190 | 148 | 185 | 175 | 165 | 11 | 17.7 | 48 | 12 | 133 | 3 | --- | |
200 w. A quarter of the HP | 3-35 | SV - 133. | 22 | 353 | 218 | 148 | 185 | 175 | 165 | 11 | 17.7 | 48 | 12 | 133 | 3 | 110 |
| 40-90. | SV - 133. | 22 | 353 | 218 | 148 | 185 | 175 | 165 | 11 | 17.7 | 48 | 12 | 133 | 3 | 110 | |
100 - 170 | SV - 133. | 28 | 383 | 218 | 170 | 220 | 205 | 195 | 11 | 23.1 | 58 | 13 | 133 | 3 | 110 | |
400 w. 1/2 HP | 3-10 | SV - 133. | 22 | 378 | 243 | 148 | 185 | 175 | 165 | 11 | 17.7 | 48 | 12 | 133 | 3 | 110 |
| 15 to 35 | SV - 160. | 28 | 408 | 243 | 170 | 220 | 205 | 195 | 11 | 23.1 | 58 | 13 | 160 | 3 | 125 | |
| 40-90. | SV - 160. | 28 | 408 | 243 | 170 | 220 | 205 | 195 | 11 | 23.1 | 58 | 13 | 160 | 3 | 125 | |
100-200. | SV - 160. | 32 | 443 | 243 | 185 | 225 | 248 | 225 | 13 | 30.2 | 65 | 16 | 160 | 3 | 125 | |
750 w. 1 HP | 3-25 | SV - 160. | 28 | 438 | 273 | 170 | 220 | 205 | 195 | 11 | 23.1 | 58 | 13 | 160 | 3 | 125 |
30-120. | SV - 160. | 32 | 473 | 273 | 185 | 255 | 248 | 225 | 13 | 30.2 | 65 | 16 | 160 | 3 | 125 | |
125-200. | SV - 160. | 40 | 528 | 273 | 230 | 310 | 290 | 268 | 15 | 36 | 85 | 21 | 160 | 5 | 125 |
Note: 1. Dc motor can be equipped with brake 2. Dc motor controller can be provided 3. * belongs to B output flange
