CV.. SZ vertical reducer with three-phase aluminum shell (brake) motor
Parameter details

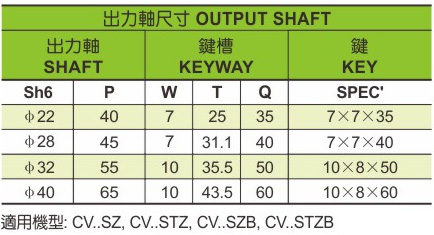

Output shaft size | |||||
Output shaft | keyway | Key | |||
Sh6 | P | W | T | Q | SPEC' |
∮22 | 40 | 7 | 25 | 35 | 7*7*35 |
Applicable models： CV..S, CV..ST, CV..SB, CV..STB, CV..SZ, CV..STZ, CV..SZB, CV..STZB

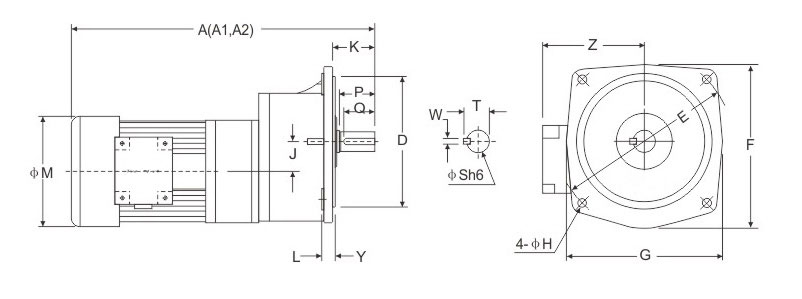

Horsepower | Reduction ratio | Ontology | S | A | A1 | A2 | D | E | F | G | H | J | K | M | Y |
200W 1/8HP | 100-200 | 2# | *22 | 315 | 315 | 315 | 55 | 170 | 146 | 146 | 11 | 19.662 | 48.6 | 133 | 120 |
400W 1/4HP | 15-90 | 2# | *22 | 330 | 330 | 330 | 55 | 170 | 146 | 146 | 11 | 19.662 | 48.6 | 167 | 135 |
750W 1/2HP | 3-25 | 2# | *22 | 330 | 330 | 330 | 55 | 170 | 146 | 146 | 11 | 19.662 | 48.6 | 167 | 135 |
Remark: A: three phase aluminum shell motor ; A1 :Three phase iron case motor ; A2 :Three phase motor with brake ; * :Type B output flange ;
