CVD vertical double shaft high speed ratio gear reducer

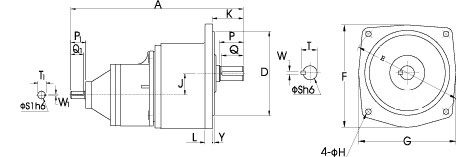

Parameter details
| Dimension of input shaft | ||||||
| Input shaft | keyway | Key | ||||
| KW | S1h6 | P1 | W1 | T1 | Q1 | SPEC' |
| 0.1 | 14 | 25 | 5 | 16.2 | 22 | 5*5*22 |
| 0.2 | 14 | 25 | 5 | 16.2 | 22 | 5*5*22 |
| 0.4 | 16 | 30 | 5 | 18.2 | 27 | 5*5*27 |
| 0.75 | 19 | 40 | 6 | 21.7 | 35 | 6*6*35 |
Output shaft size | |||||
Output shaft | keyway | Key | |||
Sh6 | P | W | T | Q | SPEC' |
∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
| ∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
單位(MM)
馬力 | 減速比 | 型番(S) | A | D | E | F | G | H | J | K | L | Y |
| 100W 1/8HP | 250-1800 | 28 | 290 | 170 | 220 | 205 | 195 | 12 | 39 | 58 | 13 | 3 |
200W 1/4HP | 250-1800 | 32 | 340 | 185 | 255 | 248 | 225 | 15 | 47.5 | 65 | 16 | 3 |
400W 1/2HP | 250-1800 | 40 | 455 | 230 | 310 | 291 | 272 | 15 | 59 | 85 | 21 | 5 |
750W 1HP | 250-1800 | 50 | 515 | 280 | 390 | 372 | 342 | 18 | 74 | 92 | 25 | 5 |
