CVM vertical force flange high speed ratio gear reducer
Parameter details
| Inlet hole size | |||
| Horsepower | Intake hole | keyway | |
| S1 F7 | W1 | T1 | |
| 1/4 HP | ∮11 | 4 | 12.8 |
| 1/2 HP | ∮14 | 5 | 16.3 |
| 1 HP | ∮19 | 6 | 21.8 |
Output shaft size | |||||
Output shaft | keyway | Key | |||
Sh6 | P | W | T | Q | SPEC' |
∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
| ∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
∮50 | 80 | 14 | 54 | 75 | 14*9*75 |

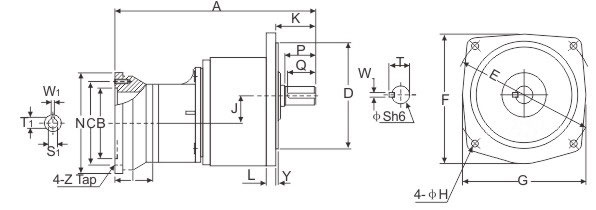

Horsepower | Reduction ratio | S | A | B | C | D | E | F | G | H | I | J | K | L | N | Y | Z |
200W 1/4HP | 250-1800 | 32 | 335 | 110 | 130 | 185 | 255 | 248 | 225 | 15 | 55 | 47.5 | 65 | 16 | 160 | 3 | M8 |
400W 1/2HP | 250-1800 | 40 | 410 | 110 | 130 | 230 | 310 | 291 | 272 | 15 | 55 | 59 | 85 | 21 | 160 | 5 | M8 |
750W 1HP | 250-1800 | 50 | 490 | 130 | 165 | 280 | 390 | 372 | 342 | 18 | 82 | 74 | 92 | 25 | 200 | 5 | M10 |
Remarks: mainly in cooperation with IEC motor.
