CV.. s (CV.. sb) vertical high speed ratio three phase aluminum shell (brake) motor reducer
Parameter details
Output shaft size | |||||
Output shaft | keyway | Key | |||
Sh6 | P | W | T | Q | SPEC' |
∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
Applicable models： CV..S, CV..ST, CV..SB, CV..STB

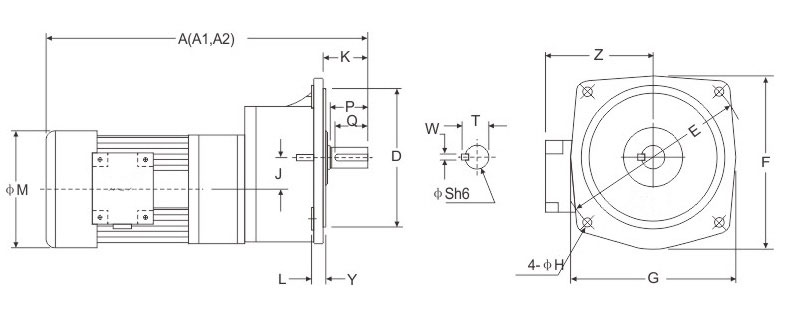

Horsepower | Reduction ratio | Ontology | S | A | A1 | A2 | D | E | F | G | H | J | K | L | M | Y | Z |
100W 1/8HP | 250-1800 | 1#+3# | 28 | 370 | 370 | 370 | 170 | 220 | 205 | 195 | 12 | 39 | 58 | 13 | 133 | 3 | 120 |
200W 1/4HP | 250-1800 | 2#+4# | 32 | 470 | 470 | 470 | 185 | 255 | 248 | 225 | 15 | 47.5 | 65 | 16 | 133 | 3 | 120 |
400W 1/2HP | 250-1800 | 3#+5# | 40 | 550 | 550 | 550 | 230 | 310 | 291 | 272 | 15 | 59 | 85 | 21 | 167 | 5 | 135 |
750W 1HP | 250-1800 | 3#+6# | 50 | 620 | 620 | 620 | 280 | 390 | 372 | 342 | 18 | 74 | 92 | 25 | 167 | 5 | 135 |
1500W 2HP | 250-1800 | 4#+6# | 50 | 690 | 690 | 690 | 280 | 390 | 372 | 342 | 18 | 81 | 92 | 25 | 192 | 5 | 146 |
Remark: A: three phase aluminum shell motor ; A1 :Three phase iron case motor ; A2 :Three phase motor with brake ;
